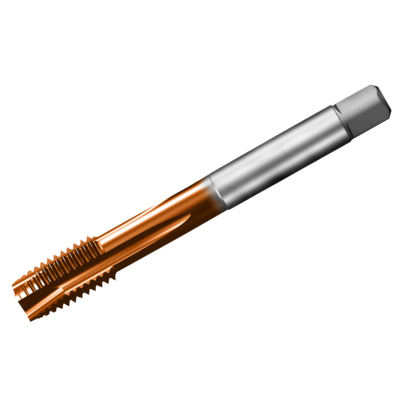

T200-XM101DA-M14 C110

产品数据材料分类层级1(TMC1ISO)PMKNS螺纹直径尺寸(TDZ)M 14螺纹加工倒角长度(TCL)8.5029 mm螺距(TP)2 mm螺纹直径(TD)14 mm预加工孔直径(PHD)12 mmPremachined hole type(PHT)1: through holeHole type(HTY)1: through hole螺纹公差等级(TCTR)6H基本标准组(BSG)DIN 3

specifications: T200-XM101DA-M14 C110

unit: 1

Online ordering

Description Warranty Info

Description

产品数据

材料分类层级1(TMC1ISO)

PMKNS

螺纹直径尺寸(TDZ)

M 14

螺纹加工倒角长度(TCL)

8.5029 mm

螺距(TP)

2 mm

螺纹直径(TD)

14 mm

预加工孔直径(PHD)

12 mm

Premachined hole type(PHT)

1: through hole

Hole type(HTY)

1: through hole

螺纹公差等级(TCTR)

基本标准组(BSG)

DIN 376

有用长度 (LU)

81 mm

机床侧适配接口 (ADINTMS)

Tap shank DIN -metric: 11.00 x 9.00

材质 (GRADE)

C110

基底(SUBSTRATE)

HSS-PM

涂层(COATING)

PVD TiCrAlN+TiSiN

冷却液接入型式代码 (CNSC)

0: without coolant

冷却液出口型式代码(CXSC)

0: no coolant exit

刀柄直径公差(TCDCON)

连接直径(DCONMS)

11 mm

最大重新研磨次数(NORGMX)

功能长度(LF)

110 mm

颈部直径(DN)

10.6 mm

容屑槽数(NOF)

容屑槽螺旋角(FHA)

0 deg

径向前角(GAMF)

7 deg

螺纹长度(THL)

25 mm

螺纹背锥特性(THBTP)

是

螺纹加工倒角类型(THCHT)

部件重量(WT)

0.079 kg

发布日期(ValFrom20)

2014/2/25

发布组件ID(RELEASEPACK)

14.1
